ESP For Oil ESP For Oil
DOWNHOLE SENSOR
Downhole mornitoring.
Size Range:：
Applications：

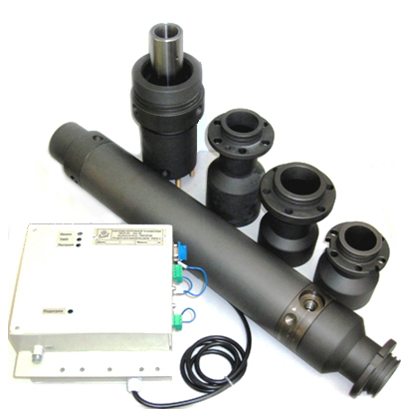

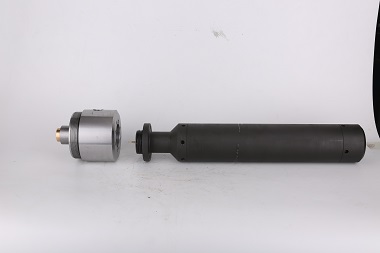

AOTE DOWNHOLE SENSOR
| Test Parameter | Measuring | Accuracy | Resolution | Velocity |
| Intake Pressure | 0-40MPa | 0.10% | 0.00069MPa | 20S |
| Discharge Pressure | 0-40MPa | 0.10% | 0.00069MPa | |
| Intake Temperature | 0-150℃ | 1℃ | 0.1℃ | |
| Mortor Temperature | 0-210℃ | 1℃ | 0.1℃ | |
| X/Y Shaft Vibration | 0-5g | 1.00% | 0.003g | |
| Current Leakage | 0-25mA | 0.05% | 1μA | |
| Applicable to ESP size | 375、456、540、562 | |||
| Submerged depth | 3500M | |||
| The standard diameter | 95mm、115mm | |||
| Protection grade | IP68 | |||
