SUBMERSIBLE MOTOR

AOTE SUBMERSIBLE MOTOR1. Applicable to 180℃ - 230℃ (356℉ - 446℉) Well Temperature.2. Five Series of Motors with outside diameter of 95mm,116mm,138mm,143mm,and 187mm for varied casing, which enable mot
- Size Range:： Outside diameter 95mm,116mm,138mm,143mm,and 187mm
- Applications： Applicable to 180℃ - 230℃ (356℉ - 446℉) Well Temperature

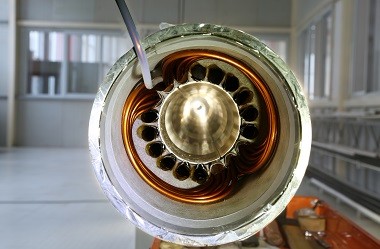

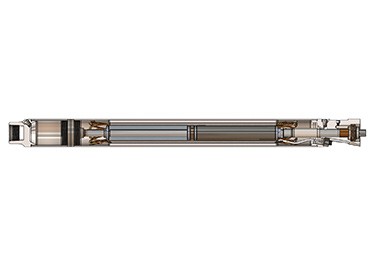

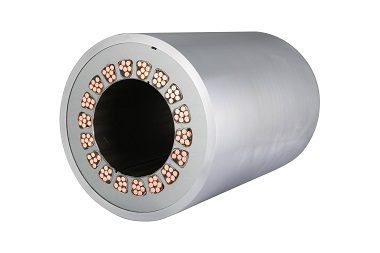

AOTE SUBMERSIBLE MOTOR

1. Applicable to 180℃ - 230℃ (356℉ - 446℉) Well Temperature.

2. Five Series of Motors with outside diameter of 95mm,116mm,138mm,143mm,and 187mm for varied casing, which enable motor run with the highest efficiency.

3. Plug in MLE and Tape in MLE, can guarantee the reliable seal and good insulation condition, site operation more simple and convenient.

SINGLE MOTOR TECHNICAL DATA

Series	Poles	O.D.	ST-Motor Power range
		O.D.	ST-Motor Power range
		In/mm	HP@50Hz	KW@50Hz	HP@60Hz	KW@60Hz
375	2	3.75/95.25	6.3-50	4.7-37	7.5-60	5.6-45
456	2	4.56/115.82	8.5-150	6.3-112	10-180	7.5-134
456	4	4.56/115.82	12.5-46	9.3-34	20-73.5	15-55
540	2	5.40/137.16	16.5-250	12.3-186	20-300	15-224
562	2	5.62/142.75	28-375	21-280	35-450	25-336
562	4	5.62/142.75	30-80	22-60	50-130	37-97
738	2	7.38/187.45	175-450	130-336	210-540	157-403

MATERIAL OPTIONS

Item.	Standard Material	Optional Material
Fasteners	S-Trim	M-Trim
Head and Base	CS	304, 316, 416, 420, Duplex SS
Coupling	CS	MONEL R-405
O-Ring	HSN	AFLAS
Thrust Bearing	Tin-bronze	PEEK
D&F Valve	304	Monel R-405
Housing	CS	304, 316, 9 Cr1Mo
Shaft	35CrMo	42CrMo
