MOTOR LEAD EXTENSION (MLE)
AOTE MOTOR LEAD EXTENSIONOne end of the MLE connects with the submersible motor. The other end connects with the power cable.MLE provide electricity to the submersible motor. MATERIALItemMaterial
Size Range:：
Applications： Provide electricity to the submersible motor.

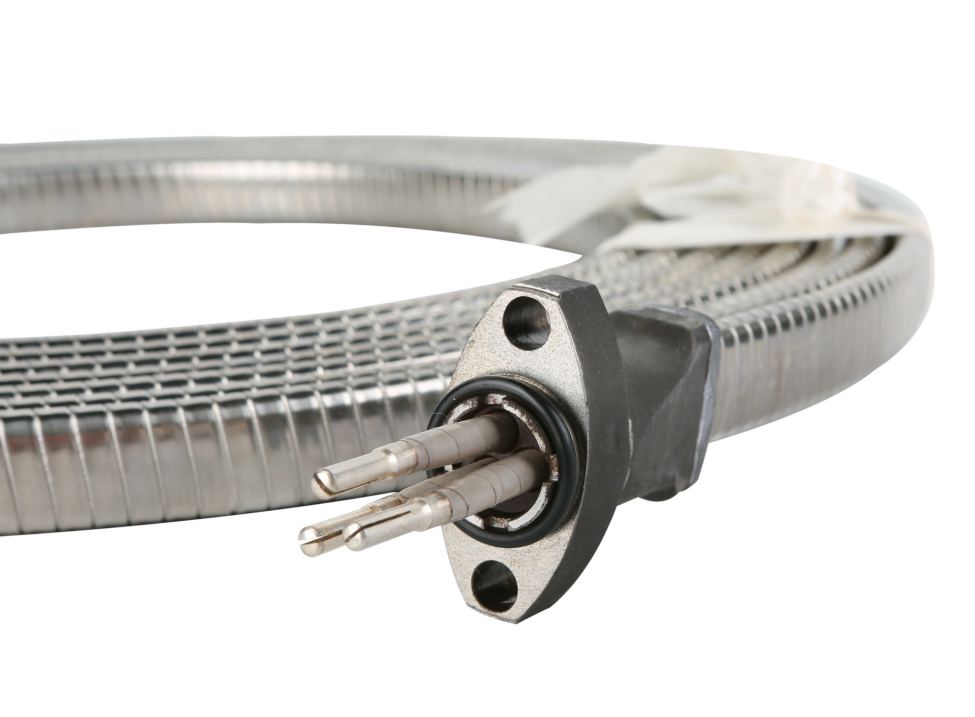

AOTE MOTOR LEAD EXTENSION(MLE)
One end of the MLE connects with the submersible motor.
The other end connects with the power cable.
MLE provide electricity to the submersible motor.
MATERIAL
| Item | Material Description | |
| Insulation | F46/EPDM | |
| Jacket | Lead | |
| Armor | Galvanized/Stainless Steel/Monel | |
SIZE INFORMATION
| Size | Overall Dimension | |
| inch | mm | |
| AWG7 | 0.40×1.01 | 10.16×25.70 |
| AWG6 | 0.42×1.06 | 10.60×26.88 |
| AWG5 | 0.50×1.17 | 12.70×29.70 |
| AWG4 | 0.52×1.28 | 13.20×32.50 |
| AWG2 | 0.53×1.48 | 13.50×37.60 |
INSTALLATION MODE （Standard: ● Optional: ○）
| tape in | plug in | |
| 375 | ● | ○ |
| 456 | ● | ○ |
| 540 | ● | ○ |
| 562 | ● | ○ |
| 738 | ● |
