INTAKE
338/400/513/675 series intake
Size Range:： Outer Diameter 3.38 inch, 4.00 inch, 5.25 inch, 6.75 inch
Applications：

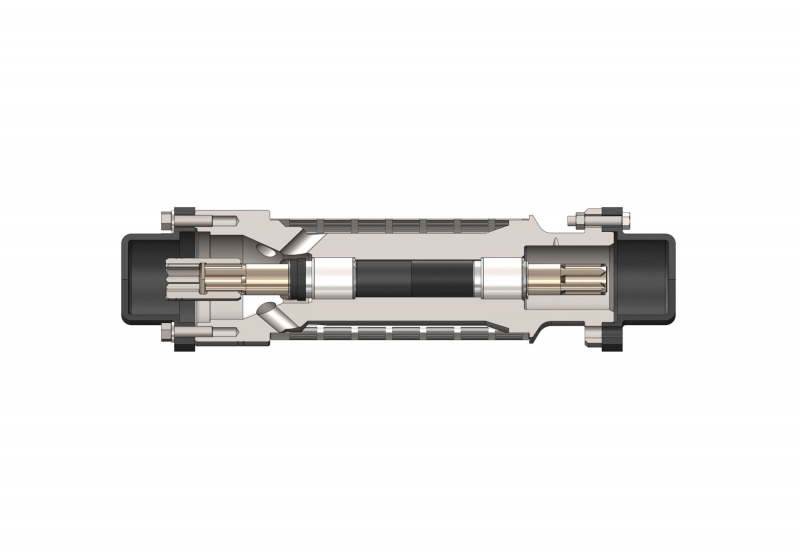

AOTE INTAKE
338/400/513/675 series intake
SPECIFICATIONS
| Series | O.D. | Shaft O.D. | Length | Weight | ||
| In/mm | In | ft | m | lbs | kg | |
| 338 | 3.38/86 | 0.688 | 1.5 | 0.4 | 24.3 | 11 |
| 400 | 4.00/101.6 | 0.875 | 1.5 | 0.4 | 30.9 | 14 |
| 513 | 5.25/130.2 | 1.187 | 1.7 | 0.5 | 52.9 | 24 |
| 675 | 6.75/171.45 | 1.187 | 1.8 | 0.5 | 77.2 | 35 |
MATERIAL OPTIONS
| Item. | Standard Material | Optional Material |
| Fasteners | S-Trim | M-Trim |
| Housing | CS | 304, 316, Monel R-405, 9Cr1Mo |
| Snap Ring | CS | 304、Monel |
| Shedder | 304 | 316 |
| Shaft | Monel K-500 | Inconel |
| Coupling | 420SS | 304, 316, Monel R-405 |
