Heavy Duty Pump Heavy Duty Pump

ATZPQK200

Heavy duty, high capacity, large flow pump
- Size Range:： Flow rate 200m3/h. Single stage head 80m
- Applications： Mining, water drain

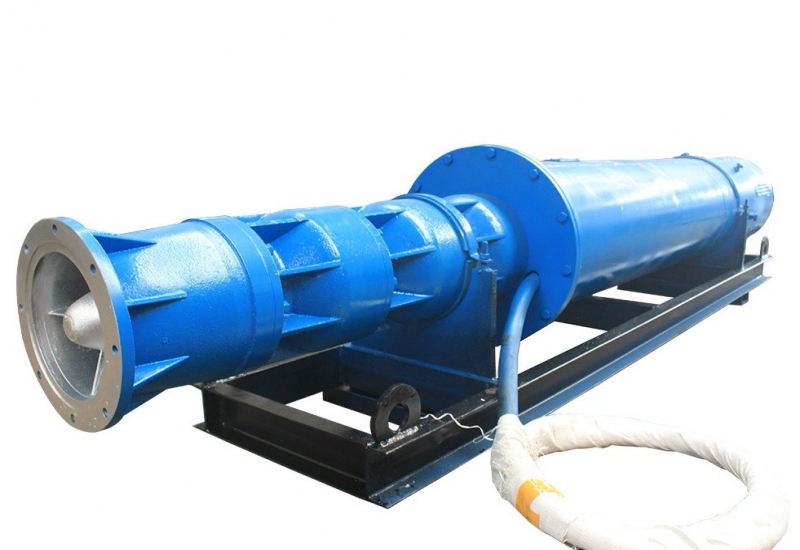

AOTE SINGLE SUCTION HEAVY DUTY WATER PUMP

Flow rate 200m3/h. Single stage head 80m. Single suction electric submersile pump
Type	Flow rate(m3/h)	Head(m)	(%)	Power(kw)	Voltage(kv)	Outer diameter(mm)	Outlet diameter(mm)	Height(mm)	Weight(kg)
ATZPQK200-200/2	180	222	71	200	0.38	620	150	4263	1959
	200	200	76.4
	220	175	68
ATZPQK200-300/3	180	334	71	300	0.66	620	150	4058	2668
	200	300	76.4
	220	273	68
ATZPQK200-400/4	180	446	71	410	0.66	620	150	4453	3275
	200	400	76.4
	220	364	68
ATZPQK200-500/5	180	558	71	470	6	620	150	4838	4412
	200	500	76.4
	220	455	68
ATZPQK200-600/6	180	670	71	600	6	620	150	5078	4989
	200	600	76.4
	220	546	68
ATZPQK200-700/7	180	782	71	600	6	620	150	5198	5416
	200	700	76.4
	220	637	68
ATZPQK200-800/8	180	894	71	720	6	620	150	5428	7373
	200	800	76.4
	220	728	68
ATZPQK200-900/9	180	1006	71	850	6	620	150	5738	8160
	200	900	76.4
	220	819	68
ATZPQK200-1000/10	180	1118	71	1000	6	620	150	5760	8667
	200	1000	76.4
	220	910	68
