Heavy Duty Pump Heavy Duty Pump

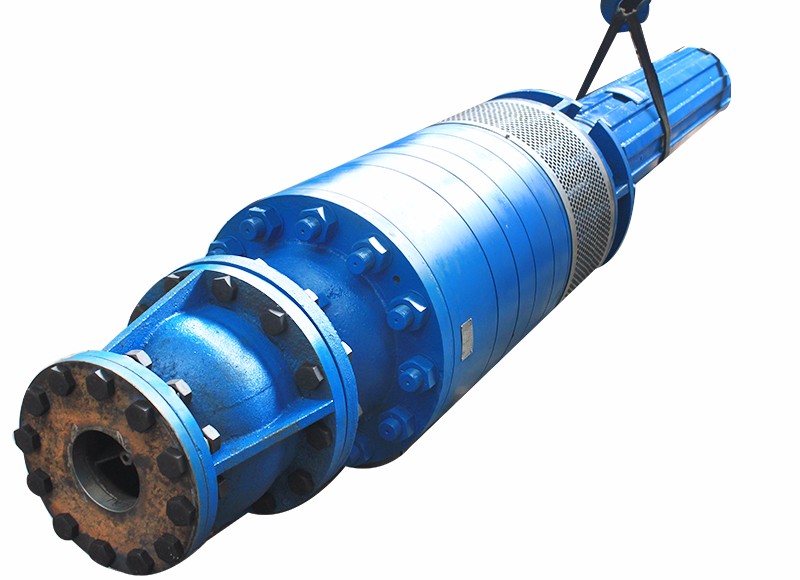

ATZPQK200
The heavy duty pump looks like special than normal pump and they often needs high voltage power.Can be vertical or horizontal and canbe designed according to your project. The heavy duty series are special pumps mainly be used in mineral mining;hard rock mining;industrial process;drdging.
Size Range::
Applications:
Flow rate 200m3/h. Single stage head 80m. Single suction electric submersile pump | |||||||||
Type | Flow rate(m3/h) | Head(m) | (%) | Power(kw) | Voltage(kv) | Outer diameter(mm) | Outlet diameter(mm) | Height(mm) | Weight(kg) |
ATZPQK200-200/2 | 180 | 222 | 71 | 200 | 0.38 | 620 | 150 | 4263 | 1959 |
200 | 200 | 76.4 | |||||||
220 | 175 | 68 | |||||||
ATZPQK200-300/3 | 180 | 334 | 71 | 300 | 0.66 | 620 | 150 | 4058 | 2668 |
200 | 300 | 76.4 | |||||||
220 | 273 | 68 | |||||||
ATZPQK200-400/4 | 180 | 446 | 71 | 410 | 0.66 | 620 | 150 | 4453 | 3275 |
200 | 400 | 76.4 | |||||||
220 | 364 | 68 | |||||||
ATZPQK200-500/5 | 180 | 558 | 71 | 470 | 6 | 620 | 150 | 4838 | 4412 |
200 | 500 | 76.4 | |||||||
220 | 455 | 68 | |||||||
ATZPQK200-600/6 | 180 | 670 | 71 | 600 | 6 | 620 | 150 | 5078 | 4989 |
200 | 600 | 76.4 | |||||||
220 | 546 | 68 | |||||||
ATZPQK200-700/7 | 180 | 782 | 71 | 600 | 6 | 620 | 150 | 5198 | 5416 |
200 | 700 | 76.4 | |||||||
220 | 637 | 68 | |||||||
ATZPQK200-800/8 | 180 | 894 | 71 | 720 | 6 | 620 | 150 | 5428 | 7373 |
200 | 800 | 76.4 | |||||||
220 | 728 | 68 | |||||||
ATZPQK200-900/9 | 180 | 1006 | 71 | 850 | 6 | 620 | 150 | 5738 | 8160 |
200 | 900 | 76.4 | |||||||
220 | 819 | 68 | |||||||
ATZPQK200-1000/10 | 180 | 1118 | 71 | 1000 | 6 | 620 | 150 | 5760 | 8667 |
200 | 1000 | 76.4 | |||||||
220 | 910 | 68 |
