Heavy Duty Pump Heavy Duty Pump

ATZPQK150

HEAVY DUTY
- Size Range:： Flow rate 150m3/h. Single stage head 80m
- Applications： Water drain Mining water drain

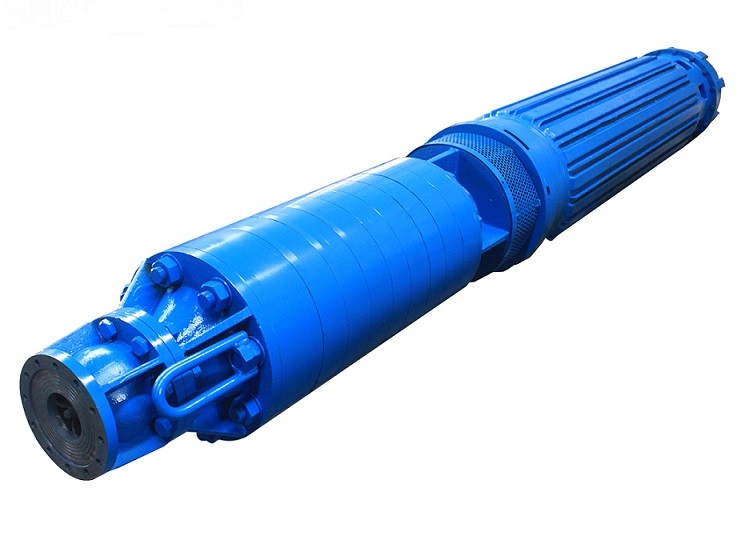

AOTE HEAVY DUTY SUBMERSIBLE WATER PUMP

Flow rate 150m3/h. Single stage head 80m. Single suction electric submersile pump
Type	Flow rate(m3/h)	Head(m)	(%)	Power(kw)	Voltage(kv)	Outer diameter(mm)	Outlet diameter(mm)	Height(mm)	Weight(kg)
ATZPQK150-240/3	125	288	67	180	0.38	550	125	4071	1747
	150	240	71.3
	180	200	69
ATZPQK150-320/4	125	384	67	220	0.38	550	125	4186	1857
	150	320	71.3
	180	266	69
ATZPQK150-400/5	125	480	67	300	0.66	550	125	3836	2200
	150	400	71.3
	180	332	69
ATZPQK150-480/6	125	576	67	350	0.66	550	125	4096	2400
	150	480	71.3
	180	398	69
ATZPQK150-560/7	125	672	67	410	0.66	550	125	4361	2600
	150	560	71.3
	180	464	69
ATZPQK150-640/8	125	768	67	470	6	550	125	4741	3420
	150	640	71.3
	180	530	69
ATZPQK150-720/9	125	864	67	520	6	550	125	4906	3590
	150	720	71.3
	180	596	69
ATZPQK150-800/10	125	960	67	600	6	550	125	5091	3790
	150	800	71.3
	180	662	69
