Axial Flow Pump Axial Flow Pump

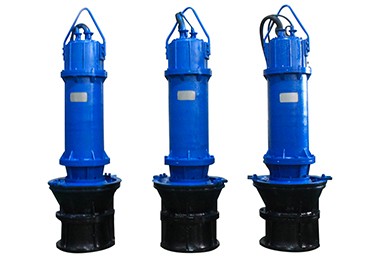

LARGE FLOW CAPACITY AXIAL PUMP
The Type QHB series is a submersible pump with non-clogging and non-stringing two-channel impeller in pot design for vertical wet-pit or dry-pit installation and universal use.
Size Range:： Flow: 200-40000m3/h Head: 1-25 m
Applications： agricultural irrigation;water conservancy, urban water supply;drainage and sewage treatment;power plants;salt factories;farms for transporting recycled water;metallurgy;chemical and other
impeller angle | Flow(Q) | Head(m) | Speed(r/min) | Power(kw) | Efficency(%) | Diameter for impeller(mm) | ||
m3/h | l/s | shaft | motor | |||||
-4° | 630 756 868 | 175 210 241 | 13.8 11.7 8.61 | 1450 | 30.58 29.54 25.69 | 34 | 80.95 84.89 82.28 | 283.5 |
-2° | 752 864 983 | 209 240 273 | 14.0 11.8 8.79 | 35.88 34.01 29.85 | 40 | 82.93 85.30 81.95 | ||
0° | 799 925 1094 | 222 257 304 | 14.9 13.0 8.89 | 40.66 39.94 34.32 | 45 | 82.62 85.30 81.36 | ||
+2° | 925 1030 1217 | 257 286 338 | 15.2 13.5 9.21 | 47.42 46.18 39.31 | 65 | 84.41 85.30 80.76 | ||
+4° | 1026 1130 1328 | 285 314 369 | 15.5 13.8 9.44 | 53.35 51.79 43.26 | 65 | 84.27 85.30 82.16 | ||
400QHB-40
