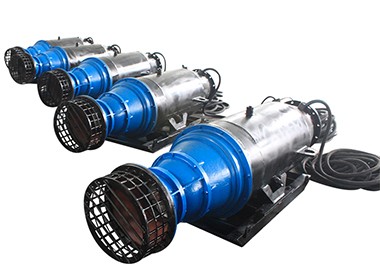

HEAVY DUTY SUBMERSIBLE WATER PUMP
The Type QZB series is a submersible pump with non-clogging and non-stringing two-channel impeller in pot design for vertical wet-pit or dry-pit installation and universal use.
Size Range::
Applications: agricultural irrigation;water conservancy, urban water supply;drainage and sewage treatment;power plants;salt factories;farms for transporting recycled water;metallurgy;chemical and other
impeller angle | Flow(Q) | Head(m) | Speed(r/min) | Power(kw) | Efficency(%) | impeller(mm) | ||
m3/h | l/s | shaft | motor | |||||
-4° | 4514 4914 5551 | 1254 1365 1542 | 7.51 6.12 3.36 | 730 | 121.7 105.3 74.3 | YQGN 315-8 132 | 80.48 82.4 72.99 | 650 |
-2° | 4900 5324 5987 | 1361 1479 1663 | 7.71 6.34 3.65 | 135.4 118.4 84.5 | YQGN315-8 155 | 80.54 82.4 74.77 | ||
0° | 5260 5688 6343 | 1461 1580 1762 | 7.91 6.56 3.89 | 148.4 131.0 92.6 | 80.91 82.4 77.14 | |||
+2° | 5522 6019 6786 | 1534 1672 1885 | 8.02 6.78 4.21 | 158.8 143.0 106.3 | YQGN315-8 180 | 81.04 82.4 77.59 | ||
+4° | 5904 6419 7189 | 1640 1783 1997 | 8.30 7.05 4.52 | 169.7 158.6 120.8 | 81.6 82.4 77.69 |
