MIXED FLOW FLOOD CONTROL WATER

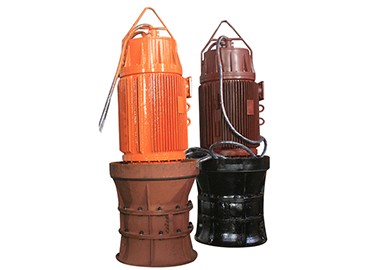

The Type QHB series is a submersible pump with non-clogging and non-stringing two-channel impeller in pot design for vertical wet-pit or dry-pit installation and universal use.
Size Range:: Flow capacity:1600m³/h-3200m³/h Head:1-15m
Applications: agricultural irrigation;water conservancy, urban water supply;drainage and sewage treatment;power plants;salt factories;farms for transporting recycled water;metallurgy;chemical and other
impeller angle | Flow(Q) | Head(m) | Speed(r/min) | Power(kw) | Efficency(%) | Diameter for impeller(mm) | ||
m3/h | l/s | shaft | motor | |||||
-4° | 1602 2088 2304 | 445 580 640 | 14.3 10.2 7.42 | 980 | 84.3 73.1 62.9 | YQGN 315-6 95 | 77.0 82.5 77.0 | 471 |
-2° | 1710 2322 2574 | 475 645 751 | 15.2 11.0 7.5 | 95.6 87.2 71.0 | YQGN 315-6 115 | 77.0 83.0 77.0 | ||
0° | 1847 2459 2844 | 513 683 790 | 15.9 12.0 7.65 | 108.0 99.6 80.0 | YQGN 315-6 130 | 77.0 83.9 77.0 | ||
+2° | 2052 2808 3186 | 570 780 885 | 16.8 12.0 7.9 | 126.8 113.7 92.6 | 77.0 83.9 77.0 |
