GERMAN TECHNOLOGY SUBMERSIBLE PUMP

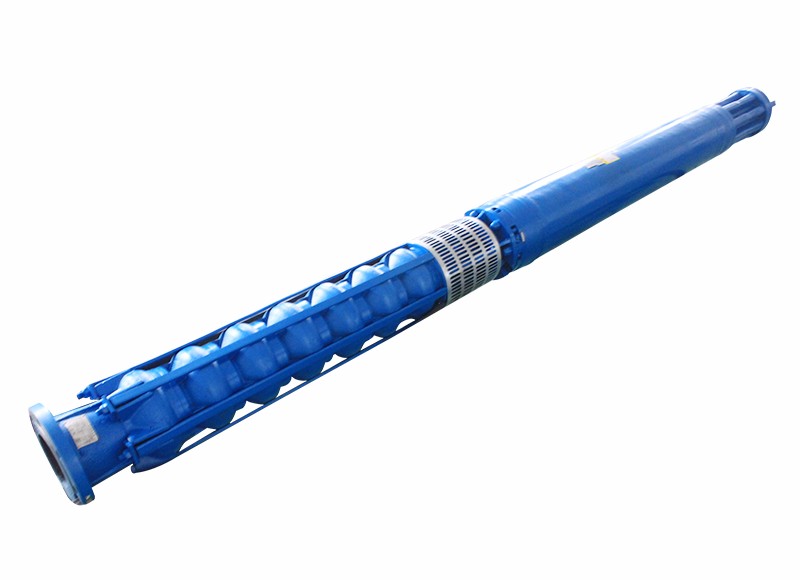

The Aote deep well submersible pump with direct coupled water filled submersible motors has single or multistage design for continuous operation. It can be vertical or horizontal and can be inctalled in deep well/water tank/river and other places.
- Size Range:： Pump sizes from 100 mm (4 in) to 1375 mm (55 in)
- Applications： pumping clean or slightly contaminated water in general water supply, irrigation and spray irrigation systems, lowering and maintaining ground water levels, pressure boosting, emergency water supply, as well as mines and fountains etc.

Type	stages	Capacity		Head m	Speed r/min	Shaft Power	Efficency (%)	motor power (kw)
Type	stages	m3/h	l/s	Head m	Speed r/min	kw	Efficency (%)	motor power (kw)
6613T	2	90	25	64.6	2900	23.3	68	30
		125	34.7	57		26.6	73
		140	38.9	51.8		27.7	71.4
	3	90	25	96.9		34.4	69	44
		125	34.7	85.5		39.3	74
		140	38.9	77.7		40.9	72.4
	4	90	25	129.2		45.2	70	64
		125	34.7	114		51.7	75
		140	38.9	103.6		53.8	73.4
	5	90	25	161.5		56.6	70	75
		125	34.7	142.5		64.7	75
		140	38.9	129.5		67.3	73.4
	6	90	25	193.8		67.9	70	87
		125	34.7	171		77.6	75
		140	38.9	155.4		80.8	73.4
	7	90	25	226.1		79.2	70	120
		125	34.7	199.5		90.5	75
		140	38.9	181.3		94.2	73.4
	8	90	25	258.4		90.5	70	120
		125	34.7	228		103.4	75
		140	38.9	207.2		107.2	73.4
	9	90	25	290.7		101.8	70	140
		125	34.7	256.5		116.4	75
		140	38.9	233.1		121.1	73.4
	10	90	25	323		113.1	70	160
		125	34.7	285		129.3	75
		140	38.9	259		134.6	73.4
	11	90	25	355.3		124.4	70	160
		125	34.7	313.3		142.2	75
		140	38.9	284.9		148.1	73.4
	12	90	25	387.6		135.7	70	180
		125	34.7	341.6		155.1	75
		140	38.9	310.8		161.6	73.4
	13	90	25	420		147	70	180
		125	34.7	370		166.4	75
		140	38.9	337		177.7	73.4
