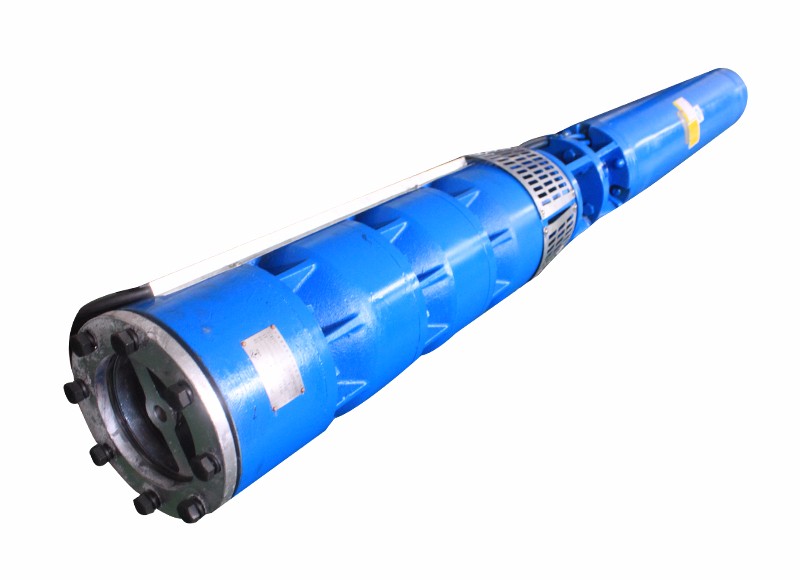

10" SUBMERSIBLE PUMP
The Aote deep well submersible pump with direct coupled water filled submersible motors has single or multistage design for continuous operation. It can be vertical or horizontal and can be inctalled in deep well/water tank/river and other places.
Size Range:： Pump sizes from 100 mm (4 in) to 1375 mm (55 in)
Applications： pumping clean or slightly contaminated water in general water supply, irrigation and spray irrigation systems, lowering and maintaining ground water levels, pressure boosting, emergency water supply, as well as mines and fountains etc.
| Name | Item | Specifiation | Remark | Customization | |
| PUMP | Model | AT250QJ | Borehole inner diamerter＞200mm | ||
| Outer Diameter(mm) | 233， 235， 280， 360, | ||||
| Flow Rate(m3/h) | 50、63、80、100、125、140、150、200 | Customization acceptable | |||
| Head(m) | 200-600 | Customization acceptable | |||
| Outlet Diameter(in) | 3'' 4'' 5'' 6'' | 1''=25.4mm | |||
| Max Working Pressure(Mp) | 6 | ||||
| Water(PH) | 6.5-—8.5 | ||||
| Installation Form | Vertical | Horizontal Type | |||
| Motor | Power Range (KW) | 7.5-300 | |||
| Voltage(V) | 380 or 660±5％ | √ | |||
| Frequency(HZ) | 50 or 60±1％ | √ | |||
| Medium Temperature | ≤20℃ | √ | |||
| Speed(r/min) | 2850(2pole) | ||||
| Insulation Grade | F | ||||
| Protection Grade | IP68 | ||||
| Material | Pump | Pump Shell | HT200, QT500, Cast Iron and etc.. | Stainless Steel, Bronze | |
| Impeller | HT200, QT500, Cast Iron and etc.. | Stainless Steel, Bronze | |||
| Shaft | 45#, 2Cr13, 3Cr13, Monel, Duplex Steel | ||||
| Motor | Guide Bearing Block | HT200, QT500, Cast Steel | Stainless Steel, Bronze | ||
| Motor Shell | Q235 and others | ||||
| Motor Base | HT200, QT500, Cast Steel | Stainless Steel, Bronze | |||
