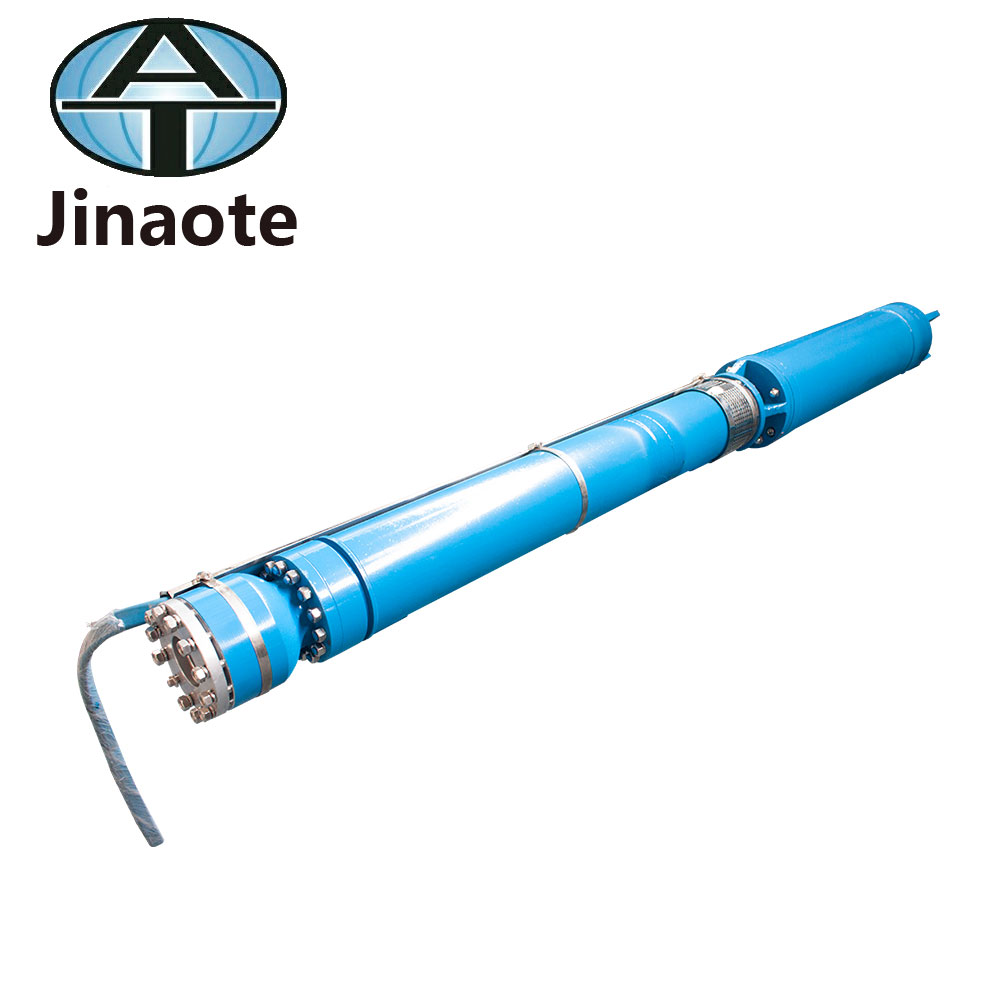

FACTORY DIRECTLY SELLING HOT WATER WELL SUBMERSIBLE PUMP FOR HOT WATER LIFTING AND TRANSFERRING

Can work in hot water up to 100℃.
- Size Range:： discharge from 2" to 10".
- Applications： hot water; hot spring;

Type	Rated Capacity m3/h	Rated Head m	Power		Outer diameter mm	Outlet	Height (mm)	Weight (kg)
Type	Rated Capacity m3/h	Rated Head m	hp	kw	Outer diameter mm	Outlet	Height (mm)	Weight (kg)
AT200QJR10-39	10	39	5.5	4	184	2"	1390	108
AT200QJR10-52		52	7.5	5.5			1520	124
AT200QJR10-65		65	10	7.5			1680	148
AT200QJR10-78		78	10	7.5			1790	160
AT200QJR10-91		91	12.5	9.2			1925	178
AT200QJR10-104		104	15	11			2060	197
AT200QJR10-117		117	17.5	13			2210	215
AT200QJR10-130		130	17.5	13			2320	227
AT200QJR10-143		143	20	15			2460	248
AT200QJR10-156		156	25	18.5			2615	273
AT200QJR10-169		169	25	18.5			2730	285
AT200QJR10-182		182	25	18.5			2845	297
AT200QJR10-195		195	30	22			3000	315
AT200QJR10-234		234	35	25			3385	357
AT200QJR10-260		260	40	30			3710	392
AT200QJR10-325		325	50	37			4360	460
AT200QJR10-390		390	60	45			5015	525
AT200QJR10-455		455	75	55			5675	600
AT200QJR10-520		520	75	55			6200	650
