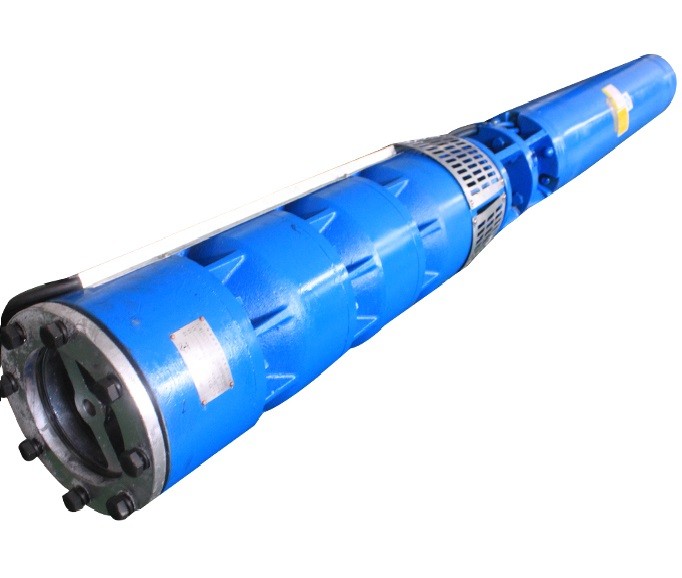

10'' SUBMERSIBLE PUMP

Stainless steel means low weight facilitating the handling of pumps and resulting in low equipment costs and reduced installation and service time. In addition pumps will be as new after service due to the high wear resistance of stainless steel.
- Size Range:： Pump sizes from 150 mm (6 in) to 1375 mm (55 in), motor sizes from 150 mm (6 in) to 840 mm (33 in)
- Applications： We offer a complete range of pumps and motors which as a standard are made completely of stainless steel AISI-304/316/316L/duplex stainless steel. This provides for good wear resistance and a reduced risk of corrosion when pumping sea water.

Type	Capacity m3/h	Head m	Power		Outer diameter	Outlet	Height (mm)	Weight (kg)
Type	Capacity m3/h	Head m	hp	kw	Outer diameter	Outlet	Height (mm)	Weight (kg)
AT250QH200-20/1	200	20	24.7	18.5	9.32 inch	6 inch	1518	182
AT250QH200-40/2		40	49.3	37			1843	241
AT250QH200-60/3		60	73.3	55			2153	304
AT250QH200-80/4		80	100	75			2560	391
AT250QH200-100/5		100	120	90			2865	434
AT250QH200-120/6		120	133.3	100			3170	553
AT250QH200-140/7		140	166.7	125			3505	625
AT250QH200-160/8		160	176	132	9.4 inch		3810	709
AT250QH200-180/9		180	200	150			3995	732
AT250QH200-200/10		200	246.7	185			4273	800
