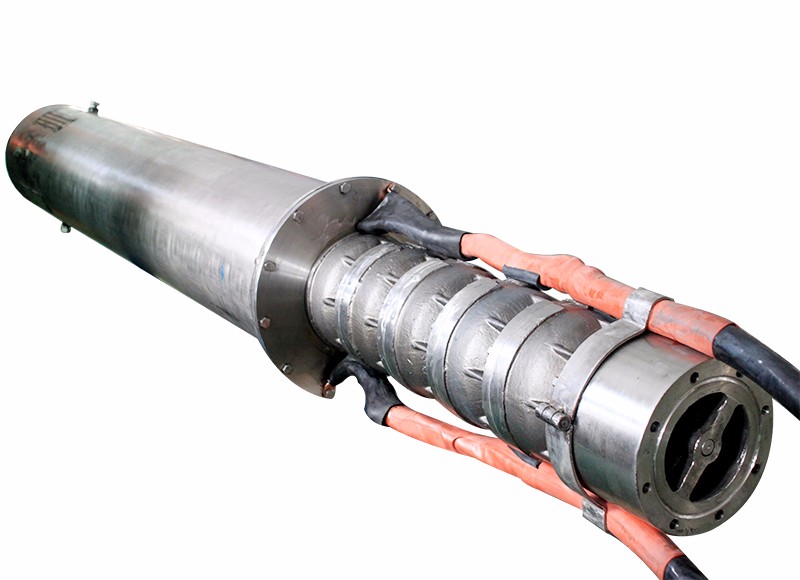

14INCH STAINLESS STEEL SUBMERSIBLE PUMP

Multistage centrifugal pump in ring-section design, completely made of stainless steel, for well diameters from 100 mm (4 inches). You can choose stainless steel 304/316/316L and duplex stainless steel.
- Size Range:：
- Applications： Handling of clean and slightly contaminated water, irrigation and drainage, spray irrigation, industrial and municipal water supply, maintaining / lowering of groundwater levels, fire-fighting systems, drinking, raw and service water supply, pressure boosting.

Name	Item		Specifiation	Remark	Customization
PUMP	Model		AT350QJH	Borehole inner diamerter ＞300mm
	Outer Diameter(mm)		320, 360
	Flow Rate(m3/h)		300、350、400、450		√
	Head(m)		23-252		√
	Outlet Diameter(in)		14''	1''=25.4mm
	Max Working Pressure(Mp)		5
	Water(PH)		3—10
	Sand Content		≤2%
	Installation Form		Vertical		Horizontal
Motor	Power Range (KW)		63-410
	Voltage(V)		380 or 660±5％		√
	Frequency(HZ)		50 or 60±1％		√
	Medium Temperature		≤35℃ or ≤120℃		√
	Speed(r/min)		2850/1450 (2pole/ 4pole)
	Insulation Grade		F
	Protection Grade		IP68
Material	Pump	Pump Shell	SS304/ 316/ 316L, Tin-bronze, Duplex Steel		Stainless Steel, Bronze
		Impeller	SS304/ 316/ 316L, Tin-bronze, Duplex Steel		Stainless Steel, Bronze
		Shaft	Stainless Steel, Monel, Duplex Steel
	Motor	Guide Bearing Block	SS304/ 316/ 316L, Tin-bronze, Duplex Steel		Stainless Steel, Bronze
		Motor Shell	SS304/ 316/ 316L, Tin-bronze, Duplex Steel
		Motor Base	SS304/ 316/ 316L, Tin-bronze, Duplex Steel		Stainless Steel, Bronze
