Stainless Steel Submersible Pump Stainless Steel Submersible Pump

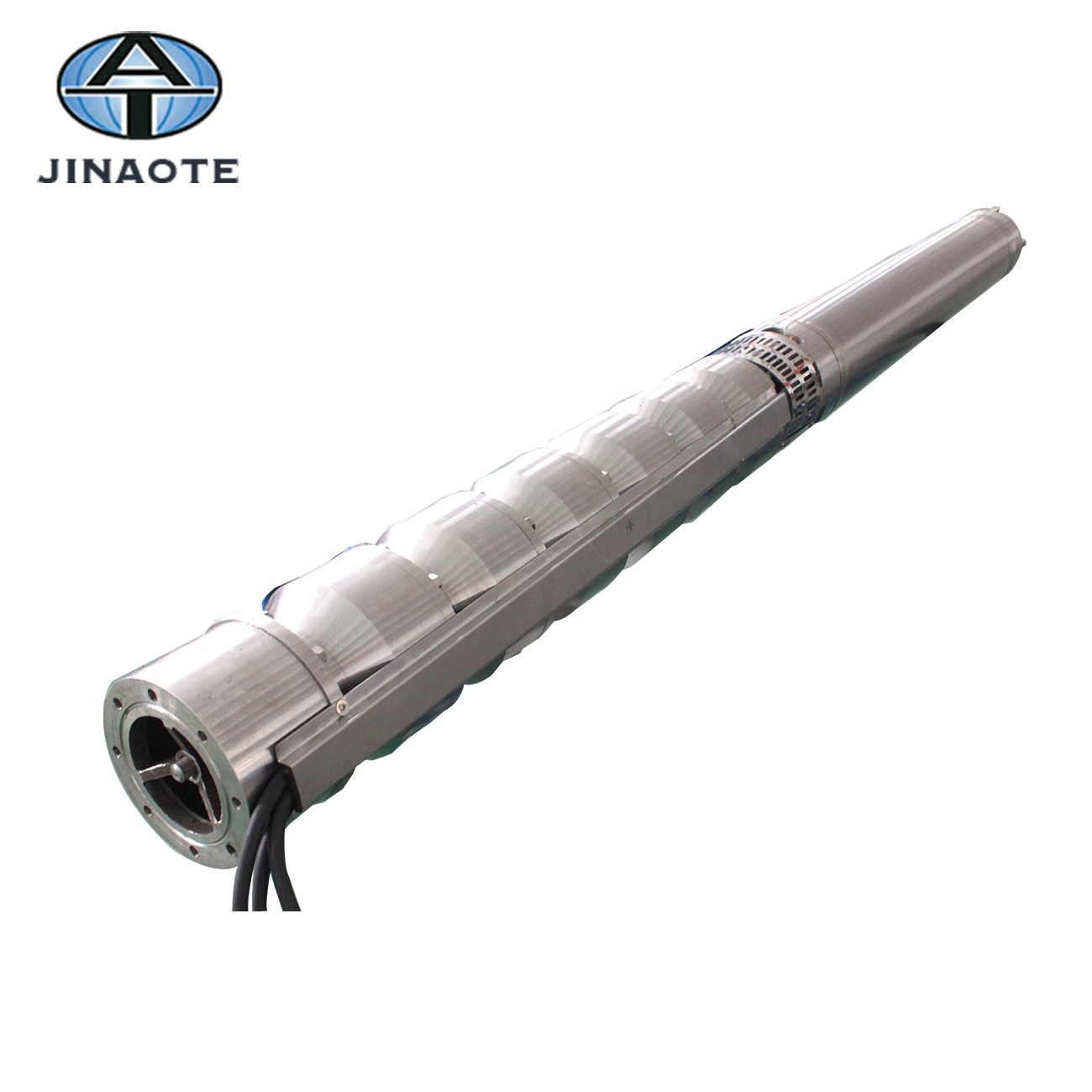

STAINLESS 304 CENTRIFUGAL DEEP WELL SUBMERSIBLE PUMP
The whole pump is casing with sophisticated stainless steel. Corrosion resistance. Motor and pump are integrated, simple structure. Easy to install, use, disassemble and maintain. Highly improve the quality of water source.
Size Range:: Flow range: 5-1500m3/h; Head range:10-1500m; Diameter: 150-600mm; Temperature: -15-100℃.
Applications: Seawater pumping. Groundwater pumping. Irrigation system. Water supply system. Circulation or boosting for clean water. Other industrial applications.
Type | Capacity m3/h | Head m | Power
| outer diameter | Outlet | Height (mm) | Weight (kg) | |
---|---|---|---|---|---|---|---|---|
hp | kw | |||||||
AT400QH400-21/1 | 400 | 21 | 60 | 45 | 13.6 | 8 inch | 2000 | 315 |
AT400QH400-42/2 | 42 | 120 | 90 | 2690 | 483 | |||
AT400QH400-63/3 | 63 | 186.7 | 140 | 3775 | 863 | |||
AT400QH400-84/4 | 84 | 240 | 180 | 4235 | 1012 | |||
AT400QH400-105/5 | 105 | 293.3 | 220 | 4485 | 1188 | |||
AT400QH400-126/6 | 126 | 346.7 | 260 | 14.4 | 4275 | 1324 | ||
AT400QH400-147/7 | 147 | 400 | 300 | 4645 | 1448 | |||
AT400QH400-168/8 | 168 | 466.7 | 350 | 5055 | 1602 | |||
AT400QH400-189/9 | 189 | 546.7 | 410 | 5470 | 1756 |
