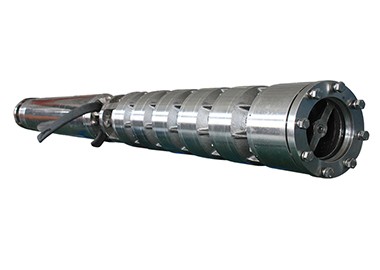

16 INCH STAINLESS STEEL SUBMERSIBLE PUMP
The rated flow(capacity) of the pump can be 650m3 per hour.The power up to 410kw.
Size Range:: Pump sizes from 150 mm (6 in) to 1375 mm (55 in); Motor power up to 1650 kW (2200 HP) 2 - 8-pole design, 50 & 60 Hz Voltage up to 6600 V.
Applications: Aote has a range of submersible dewatering pumps suited to draining water from a riverbed, constructions site, caisson or mine shaft. We can also custom design and manufacture units to meet your specifications and industry requirements.
Type | Capacity m3/h | Head m | Power
| outer diameter | Outlet | Height (mm) | Weight (kg) | |
---|---|---|---|---|---|---|---|---|
hp | kw | |||||||
AT400QH650-10/1 | 650 | 10 | 60 | 45 | 13.6 | 10 inch | 2000 | 315 |
AT400QH650-20/2 | 20 | 120 | 90 | 2690 | 483 | |||
AT400QH650-30/3 | 30 | 186.7 | 140 | 3775 | 863 | |||
AT400QH650-40/4 | 40 | 240 | 180 | 4235 | 1012 | |||
AT400QH650-50/5 | 50 | 293.3 | 220 | 4485 | 1188 | |||
AT400QH650-60/6 | 60 | 346.7 | 260 | 14.4 | 4275 | 1324 | ||
AT400QH650-70/7 | 70 | 400 | 300 | 4645 | 1448 | |||
AT400QH650-80/8 | 80 | 466.7 | 350 | 5055 | 1602 | |||
AT400QH650-90/9 | 90 | 546.7 | 410 | 5470 | 1756 |
