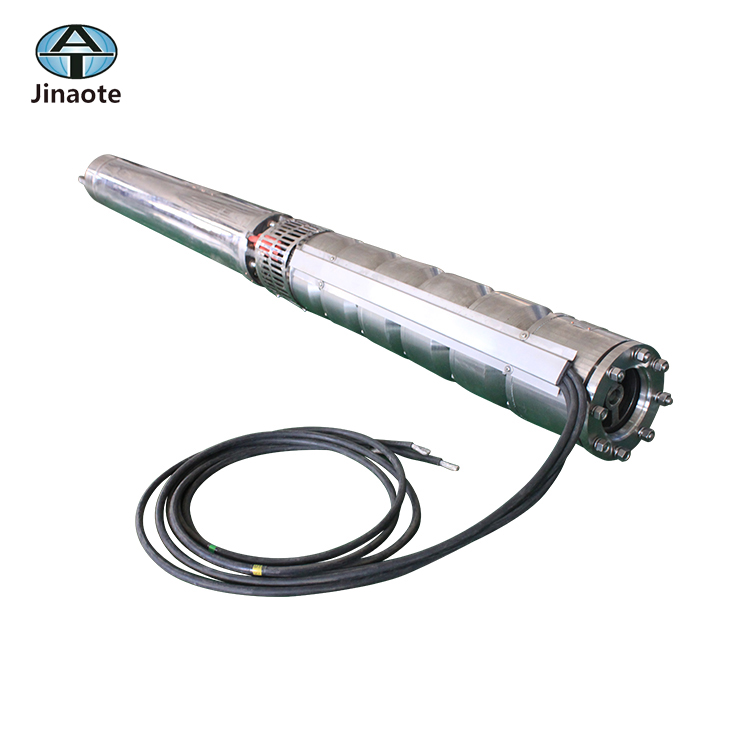

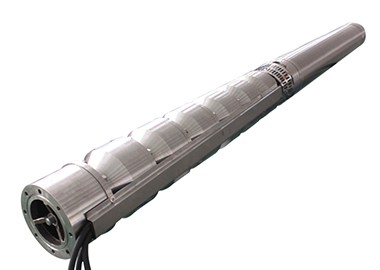

16INCH STAINLESS STEEL SUBMERSIBLE PUMP
TypeCapacitym3/hHeadmPower outer diameterOutletHeight(mm)Weight(kg)hpkwAT400QH300-49/1300491007512.8 inch8 inch2370416AT400QH300-98/2982001503660848AT400QH300-147/3147293.322040401058AT400QH300-1
Size Range:: 4"/6"/7"/8"/10"/12"/14"/16"/20"; You can customize special size.
Applications: Handling of clean and slightly contaminated water,sea water, irrigation and drainage, spray irrigation, industrial and municipal water supply, maintaining / lowering of groundwater levels, fire-fighting systems, drinking, raw and service water supply, pressure boosting.
Type | Capacity m3/h | Head m | Power
| outer diameter | Outlet | Height (mm) | Weight (kg) | |
---|---|---|---|---|---|---|---|---|
hp | kw | |||||||
AT400QH300-49/1 | 300 | 49 | 100 | 75 | 12.8 inch | 8 inch | 2370 | 416 |
AT400QH300-98/2 | 98 | 200 | 150 | 3660 | 848 | |||
AT400QH300-147/3 | 147 | 293.3 | 220 | 4040 | 1058 | |||
AT400QH300-196/4 | 196 | 400 | 300 | 14.4 inch | 3960 | 1261 | ||
AT400QH300-245/5 | 245 | 546.7 | 410 | 4550 | 1501 |
