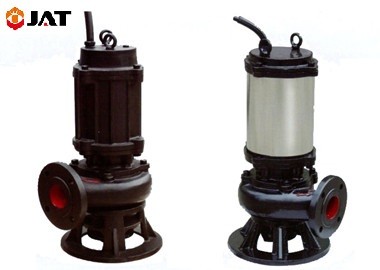

HOT SALE SUBMERSIBLE SEWAGE PUMP

Submersible sewage water pump is mainly used in municipal engineering, industrial, hospitals, construction, hotels, restaurants and other industries. For discharging sewage sludge, waste water, city with solid and long fiber (including occasions corrosive, aggressive media).
- Size Range:： The outlet size from 50mm to 600mm.
- Applications： Handling of all types of abrasive or aggressive waste water in water and waste water engineering as well as industry, especially untreated sewage containing long fibres and solid substances, fluids containing gas / air, as well as raw, activated and digested sludge; sea water desalination.

Vertical, single-stage submersible motor pump made of wear-resistant industrial materials in close-coupled design, for wet or dry installation, stationary and transportable version.

Type	Outlet diameter(mm)	Capacity		Head(m)	Speed(r/min)	power(kW)	Efficiency(%)	Weight(Kg)
Type	Outlet diameter(mm)	(m³/h)	（L/s）	Head(m)	Speed(r/min)	power(kW)	Efficiency(%)	Weight(Kg)
AT300WQ600-6-18.5	300	500	138.9	7	1470	18.5	69	650
		600	166.7	6			65
		750	208.3	5			61
AT300WQ600-7-22		500	138.9	8	1470	22	69	660
		600	166.7	7			65
		750	208.3	6			61
AT300WQ700-11-30		550	152.8	13	980	30	72	780
		750	194.4	11			78
		1000	277.8	8			77
AT300WQ700-14-37		550	152.8	16	980	37	72	880
		750	194.4	14			78
		1000	277.8	10			77
AT300WQ700-16-45		550	152.8	18	980	45	72	1150
		750	194.4	16			78
		1000	277.8	12			77
AT300WQ700-19-55		550	152.8	21	980	55	70	1215
		750	194.4	19			75
		1000	277.8	14			73
AT300WQ700-20-75		800	222.2	23	990	75	75	1530
		1000	277.8	20			82
		1400	388.9	15			80
AT300WQ700-24-90		800	222.2	27	990	90	75	1650
		1000	277.8	24			82
		1400	388.9	18			80
AT300WQ700-28-110		800	222.2	31	1480	110	75	1720
		1000	277.8	28			82
		1400	388.9	20			80
AT300WQ700-35-132		800	222.2	38	1480	132	75	1800
		1000	277.8	35			82
		1400	388.9	27			80
