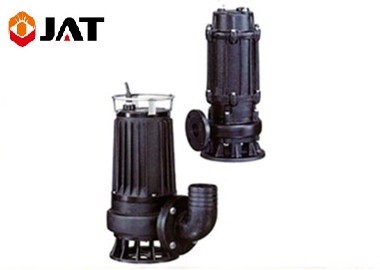

CAST IRON SUBMERSIBLE SEWAGE PUMP

Vertical, single-stage submersible motor pump made of wear-resistant industrial materials in close-coupled design, for wet or dry installation, stationary and transportable version.
- Size Range:： The outlet size from 50mm to 600mm.
- Applications： Submersible sewage water pump is mainly used in municipal engineering, industrial, hospitals, construction, hotels, restaurants and other industries. For discharging sewage sludge, waste water, city with solid and long fiber (including occasions corrosive, aggressive media).

Handling of all types of abrasive or aggressive waste water in water and waste water engineering as well as industry, especially untreated sewage containing long fibres and solid substances, fluids containing gas / air, as well as raw, activated and digested sludge; sea water desalination.

Type	Outlet diameter(mm)	Capacity		Head(m)	Speed(r/min)	power(kW)	Efficiency(%)	Weight(Kg)
Type	Outlet diameter(mm)	(m³/h)	（L/s）	Head(m)	Speed(r/min)	power(kW)	Efficiency(%)	Weight(Kg)
AT600WQ3000-8-110	600	2500	694.4	10	590	110	70	2900
		3000	833.3	8			68
		4000	1111.1	6			65
AT600WQ3000-10-132		2500	694.4	12	590	132	70	3000
		3000	833.3	10			75
		4000	1111.1	8			72
AT600WQ4000-10-160		3000	833.3	13	745	160	78	3000
		4000	1111.1	10			75
		5000	1388.9	8			73
AT600WQ4000-11-185		3000	833.3	15	745	185	78	3050
		4000	1111.1	11			75
		6000	1666.7	6			65
AT600WQ4000-12-200		3000	833.3	16	745	200	75	3100
		4000	1111.1	12			72
		6000	1666.7	7			65
AT600WQ4000-14-220		3000	833.3	18	745	220	77	3300
		4000	1111.1	14			75
		6000	1666.7	9			72
AT600WQ4000-16-250		3000	833.3	21	745	250	75	3500
		4000	1111.1	16			78
		6000	1666.7	10			73
AT600WQ4000-18-280		3000	833.3	23	745	280	75	3750
		4000	1111.1	18			77
		6000	1666.7	11			72
AT600WQ4000-20-315		3000	833.3	25	745	315	75	4000
		4000	1111.1	20			77
		6000	1666.7	13			73
