Submersible Sewage Pump Submersible Sewage Pump

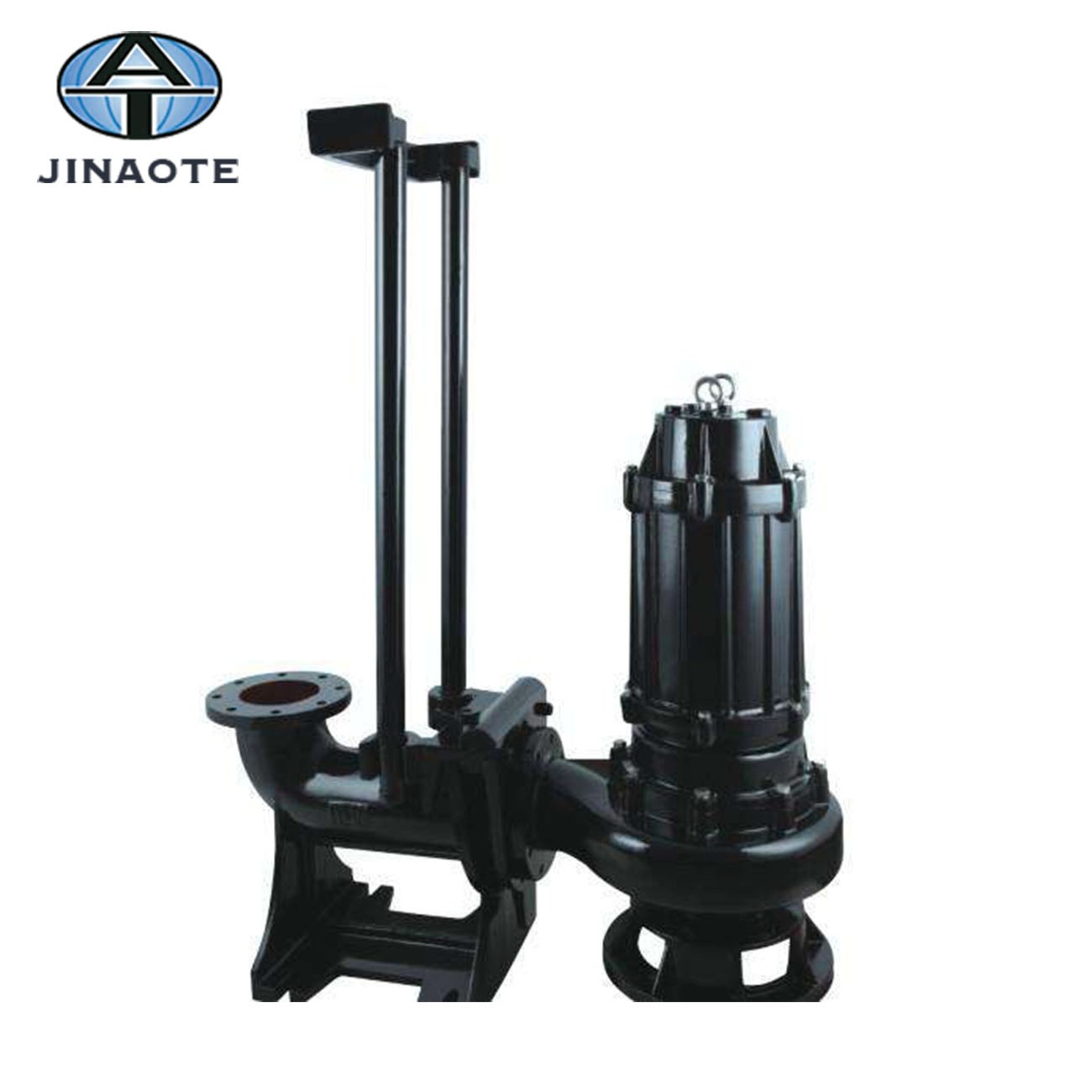

SUBMERSIBLE SLUDGE PUMPS
Handling of all types of abrasive or aggressive waste water in water and waste water engineering as well as industry, especially untreated sewage containing long fibres and solid substances, fluids containing gas / air, as well as raw, activated and digested sludge; sea water desalination.
Size Range:： The outlet size from 50mm to 600mm.
Applications： Vertical, single-stage submersible motor pump made of wear-resistant industrial materials in close-coupled design, for wet or dry installation, stationary and transportable version.
| Type | Outlet diameter(mm) | Capacity | Head(m) | Speed(r/min) | power(kW) | Efficiency(%) | Weight(Kg) | |
(m³/h) | （L/s） | |||||||
AT100WQ80-7-3 | 100 | 65 | 18.1 | 8 | 1420 | 3 | 62 | 85 |
80 | 22.2 | 7 | 64 | |||||
120 | 33.3 | 5 | 60 | |||||
| AT100WQ80-10-4 | 65 | 18.1 | 12 | 1440 | 4 | 62 | 95 | |
80 | 22.2 | 10 | 64 | |||||
120 | 33.3 | 7 | 62 | |||||
| AT100WQ80-13-5.5 | 65 | 18.1 | 15 | 1440 | 5.5 | 58 | 120 | |
80 | 22.2 | 13 | 64 | |||||
120 | 33.3 | 10 | 67 | |||||
| AT100WQ80-18-7.5 | 65 | 18.1 | 21 | 1440 | 7.5 | 58 | 135 | |
80 | 22.2 | 18 | 64 | |||||
120 | 33.3 | 13 | 67 | |||||
| AT100WQ80-24-11 | 65 | 18.1 | 28 | 2900 | 11 | 58 | 190 | |
80 | 22.2 | 24 | 64 | |||||
120 | 33.3 | 20 | 67 | |||||
| AT100WQ80-32-15 | 65 | 18.1 | 35 | 2900 | 15 | 54 | 215 | |
80 | 22.2 | 32 | 58 | |||||
120 | 33.3 | 25 | 62 | |||||
| AT100WQ80-36-18.5 | 65 | 18.1 | 40 | 2900 | 18.5 | 50 | 280 | |
80 | 22.2 | 36 | 55 | |||||
120 | 33.3 | 30 | 60 | |||||
| AT100WQ80-40-22 | 65 | 18.1 | 45 | 2900 | 22 | 50 | 290 | |
80 | 22.2 | 40 | 55 | |||||
120 | 33.3 | 35 | 60 | |||||
