Submersible Motor Submersible Motor

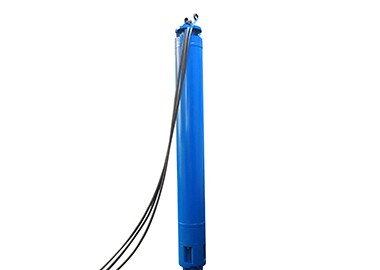

20-150HP(15-110KW) YQS200 SERIES SUBMERSIBLE MOTOR

OEM and customization is acceptable.
- Size Range:： Max Outer Diameter: 180mm(7 inch) Power: 20-150HP(15-110KW) Power supply: from 380v to 10kv; 3 phase; AC
- Applications： Deep well inner diameter 8 inch and upper.

AOTE 20-122HP(15-122KW) YQS200 Series Submersible Motor

Material: Stainless Steel/ Cast Iron/ Customization

SPECIFICATIONS

Type	Rated Power		Rated Voltage (V)	Rated Current (A)	Efficency (%)
Type	HP	KW	Rated Voltage (V)	Rated Current (A)	Efficency (%)
YQS200-15	20	15	380	33.8	81.0
YQS200-18.5	25	18.5		41.6	81.5
YQS200-22	30	22		48.2	82.0
YQS200-25	35	25		54.5	82.5
YQS200-30	40	30		65.4	83.0
YQS200-37	50	37		79.7	84.0
YQS200-45	60	45		96.9	84.0
YQS200-55	75	55		123	84.0
YQS200-63	86	86		126	85.0
YQS200-75	102	75		150	85.0
YQS200-90	122	90		180	85.0
YQS200-100	136	136		210	85.0
YQS200-110	150	110		231	85.0
